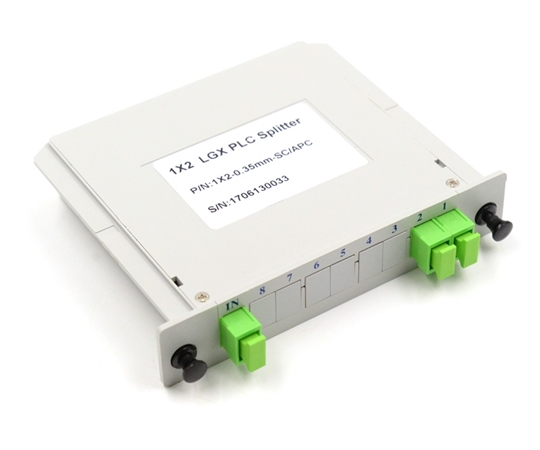

O2OFiber offers a variety of box and cassette type splitter modules and products. This PLC Splitter Module is a plastic module called a ABS box with ruggedized fiber jacketsan SC/APC connectors.
Product Features
- Compatible withFOTB-X31B
- 1 x SC/ACP Input Fiber
- 2 x SC/APC Output Fibers
- ABS Box Type Module
- Plug and Play Ready
- Low Insertion Loss
- Low Polarization Dependent Loss
- Excellent Environmental Stability
- Telcordia GR-1221 and GR-1209
- Excellent Mechanical Stability
Applications
- Fiber to The Point (FTTX)
- Fiber to The Home (FTTH)
- Passive Optical Networks (PON)
- Gigabit Passive Optical Networks (GPON)
- Local Area Networks (LAN)
- Cable Television (CATV)
- Test Equipment
| Wavelength | 1260nm / 1650nm |
| Connector | SC/APC |
| Type | 1 x 2 |
| Fiber Type | Corning SMF-28e Fiber |
| Insertion Loss (dB) Max | <4.0 |
| Uniformity (dB) Max | <0.6 |
| PLD (dB) Max | <0.2 |
| Directivity Min | 55dB |
| Return Loss (dB) Min | 55 (50) |
| Operating Temperature | -40 ~ +85°C |
| Power Handling | 300mW |
