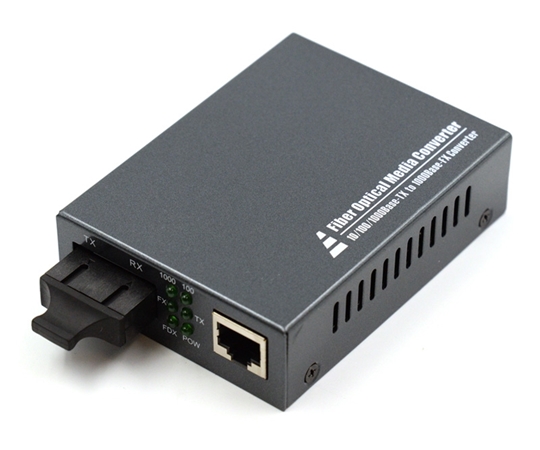

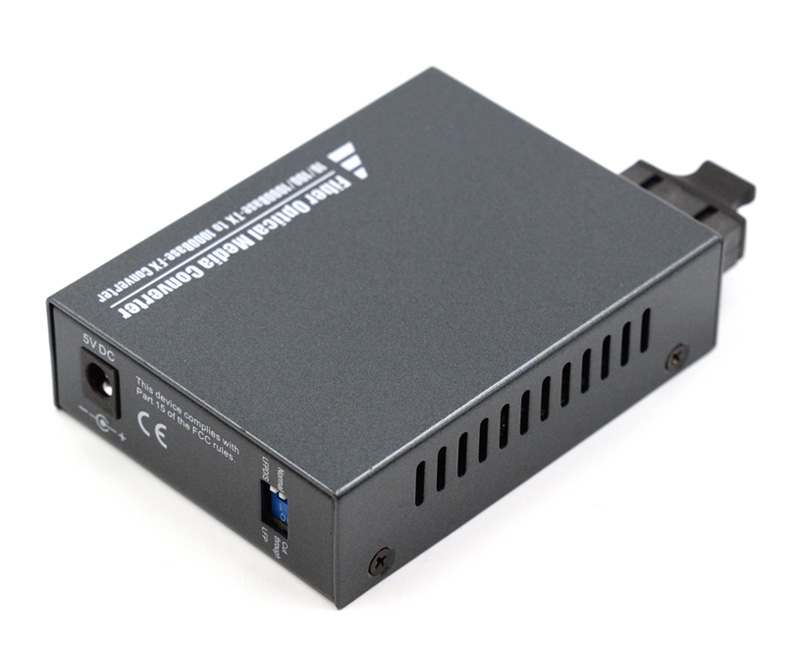

The O2OFiber 2200 series Fiber to Ethernet RJ45 converter complies with IEEE 802.3/ab Gigabit Ethernet standards. It supports two types of media for network connections such as 10/100/1000 Base-T to 1000 Base SX/LX and connects these two of segments to operate smoothly.
The EMC-2200 series can be used in a 16 slot chassis as plug in module. It transforms 1000Base-T (Copper Gigabit) media to 1000Base-SX/LX (Fiber Gigabit) media and vice versa. The 1000Base-T port supports full-duplex Gigabit connection at wire speed with a RJ45 connector. The fiber Gigabit connection supports Shortwave (SX) or Longwave (LX) laser optic with Multimode or Single-mode SC type connector.
This solution will offer a low-cost integration option for network managers who want to migrate from 10/100 networks to Gigabit Ethernet. Gigabit Only switches can now be connected to 10/100 networks without the need to upgrade the 10/100 side, allowing network managers to add new equipment gradually.
Product Features
- Easy Intergration
- Cost Effective
- Wall-Mountable, pluggable in universal chassis or desktop
- Transfer Protocal: 1000 FDX with NWAY auto-negotiation
- Compliant withIEEE802.3z/ab 1000Base-T 1000Base-SX/LX
| Mode | Multimode |
| Connector | SC/UPC |
| Maximum Distance | 550m Multimode |
| Input Power | 2A +5V, Comes with 115V Adapter |
| Operating Temperature | 0 ~ 70°C |
| Height | 26.2mm |
| Width | 105mm |
| Depth | 81mm |
